Threat Detection позволяет "мониторить вторжения" и информирует Администратора о возможных атаках.
Threat Detection не является заменой IDS/IPS, и используется в случае недоступности функций IDS/IPS.

Существуют следующие компоненты Threat Detection:

1. Basic Threat Detection
2. Advanced Threat Detection
3. Scanning Threat Detection

Basic Threat Detection

Basic Threat Detection имеет чисто информационный характер, и не выполняет каких-то действий для предотвращения атак.
Basic Threat Detection заключается в общем мониторинге dropped packets для следующих events:
 Packes denied by Access Lists (ACL Drop).
 Bad packet format (such as invalid-ip-header or invalid-tcp-hdr-length).
 Connection limits exceeded (both system-wide resource limits, and limits set in theconfiguration).
 DoS attack detected (such as an invalid SPI, Stateful Firewall check failure).
 Basic firewall checks failed (This option is a combined rate that includes all firewallrelated packet drops in this bulleted list. It does not include non-firewall-related drops such as interface overload, packets failed at application inspection, and scanning attack detected.)
 Suspicious ICMP packets detected.

 Packets failed application inspection.
 Interface overload.
 Scanning attack detected (This option monitors scanning attacks; for example, the first TCP packet is not a SYN packet, or the TCP connection failed the 3-way handshake. Full scanning threat detection takes this scanning attack rate information and acts on it by classifying hosts as attackers and automatically shunning them, for example.)
 SYN Attack Detection. Incomplete session detection such as TCP SYN attack detected or no data UDP session attack detected.

Как работает Threat Detection.
Average Rate Interval (ARI) - это интервал времени, в котором измеряются количество Packet Drop.

Если в интервале ARI количество Packet Drop превышает заданный уровень threshold, ASA считает что произошел threat, - и генерит в лог system log message (733100).

Basic threat detection включает два threshold, которые можно настраивать:

• average rate - это среднее число drops per second, посчитанное для заданного ARI.
• burst rate -

Настройка Basic Threat Detection

Basic Threat Detection включена по умолчанию.
Вручную включить можно командой:

threat-detection basic-threat

Либо через ASDM: Configuration>Firewall>Threat Detection

Просмотр статистики:

show threat-detection rate
                          Average(eps)    Current(eps) Trigger      Total events
  10-min ACL  drop:                  2               0       0              1334
  1-hour ACL  drop:                  0               2       0              2017
  10-min SYN attck:                  0               0       0               267
  1-hour SYN attck:                  0               0       0               699
  10-min  Scanning:                  3               1       4              1926
  1-hour  Scanning:                  1               3       0              3726
  10-min Bad  pkts:                  0               0       0                18
  1-hour Bad  pkts:                  0               0       0                65
  10-min  Firewall:                  2               1       0              1659
  1-hour  Firewall:                  0               2       0              3027
  10-min DoS attck:                  0               0       0               307
  1-hour DoS attck:                  0               0       0               945
  10-min Interface:                  2               0       0              1720
  1-hour Interface:                  1               1       0              3671

Здесь нас больше всего интересует столбец Trigger: в данном примере было обнаружено 4 атаки типа Scanning.

Посмотреть установки Basic Threat Detection events:

show running-config all threat-detection

Установки можно поменять.

Advanced Threat Detection

Advanced threat detection - это также лишь статистика, но более подробная.
Advanced Threat Detection позволяет определить traffic rates для hosts, ports, protocols, ACLs.

Advanced threat detection может перегрузить ресурсы системы!!!
Включение:

• threat-detection statistics port number-of-rate 1 - статистика по TCP/UDP портам
• threat-detection statistics protocol number-of-rate 1 - cтатистика по протоколам IP, non-TCP/UDP.
• threat-detection statistics host number-of-rate 1 - статистика по хостам.
• threat-detection statistics access-list - статистика по ACL
• threat-detection statistics tcp-intercept
• hpm topN enable

Здесь number-of-rate означает количество отслеживаемых rate intervals. Доступно 1-3 и чем больше, тем больше необходимо ресурсов.
1-отслеживается за 1 hour.
2-отслеживается за 1 hour, 8 hours.
3-отслеживается за 1 hour, 8 hours, and 24 hours.

threat-detection statistics port number-of-rate 1
threat-detection statistics protocol number-of-rate 1
threat-detection statistics host number-of-rate 1
threat-detection statistics access-list
threat-detection statistics tcp-intercept
hpm topN enable

Scanning Threat Detection

Scanning Threat Detection способна также и блокировать attacker.

Scanning Threat Detection может перегрузить ресурсы системы!!!

Конфигурация:

threat-detection scanning-threat shun
threat-detection scanning-threat shun duration 3600
threat-detection scanning-threat shun except ip-address 10.1.1.1 255.255.255.0

Проверка:

show threat-detection shun

show threat-detection scanning-threat

Поведение в реальных ситуациях

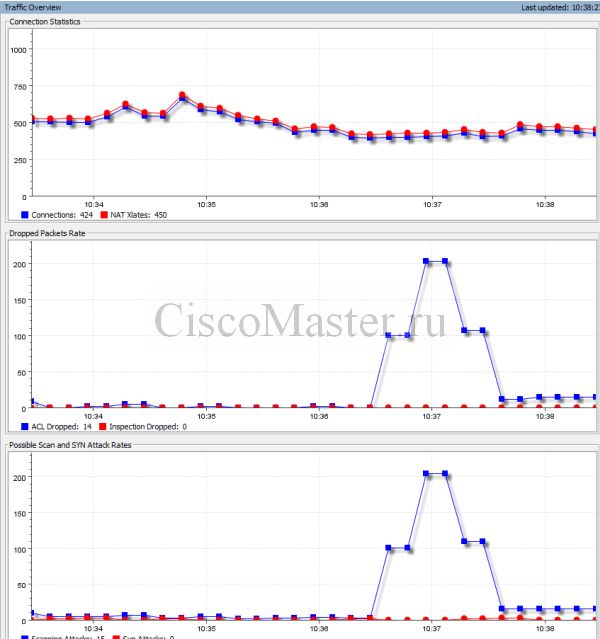

В случае подозрения что у нас какие-то проблемы, первое что следует сделать - открыть ASDM, и посмотреть Firewall Dashboard.
Ниже приведён пример реакции ASA на сканирование извне через nmap. Поскольку при сканировании перебираются порты, мы получим массу ACL Dropped и Possble Scans.

Далее смотрим логи:
May 05 2017 10:41:03: %ASA-4-733100: [ Scanning] drop rate-1 exceeded. Current burst rate is 4 per second, max configured rate is 10; Current average rate is 12 per second, max configured rate is 5; Cumulative total count is 7530
May 05 2017 10:41:03: %ASA-4-733100: [ Scanning] drop rate-2 exceeded. Current burst rate is 0 per second, max configured rate is 8; Current average rate is 5 per second, max configured rate is 4; Cumulative total count is 18327
May 05 2017 10:41:23: %ASA-4-733100: [ Scanning] drop rate-1 exceeded. Current burst rate is 4 per second, max configured rate is 10; Current average rate is 12 per second, max configured rate is 5; Cumulative total count is 7517

Как видно, в логах валятся ругань на threat category [ Scanning].
Соответственно мы увидим что будут расти счётчики Scanning:
show threat-detection rate

msk-asa-01# show threat-detection rate
                          Average(eps)    Current(eps) Trigger      Total events
  10-min ACL  drop:                  9               8       0              5709
  1-hour ACL  drop:                  4               8       0             17583
  10-min SYN attck:                  0               0       0               200
  1-hour SYN attck:                  0               0       0              1458
  10-min  Scanning:                 10               9     599              6164
  1-hour  Scanning:                  5               9     559             20978
  10-min Bad  pkts:                  0               0       0                19
  1-hour Bad  pkts:                  0               0       0               176
  10-min  Firewall:                  9               9       0              5964
  1-hour  Firewall:                  5               8       0             19520
  10-min DoS attck:                  0               0       0               236
  1-hour DoS attck:                  0               0       0              1761
  10-min Interface:                 12              27       0              7684
  1-hour Interface:                  5               8       0             20677

Трафик массово дропается, посмотрим причины:
show asp drop

msk-asa-01# show asp drop

Frame drop:
  No valid adjacency (no-adjacency)                                          208
  No route to host (no-route)                                                248
  Flow is denied by configured rule (acl-drop)                            146493
  First TCP packet not SYN (tcp-not-syn)                                    5668
  TCP Dual open denied (tcp-dual-open)                                        30
  TCP data send after FIN (tcp-data-past-fin)                                  8
  TCP failed 3 way handshake (tcp-3whs-failed)                              2374
  TCP RST/FIN out of order (tcp-rstfin-ooo)                                 8020
  TCP packet SEQ past window (tcp-seq-past-win)                              671
  TCP Out-of-Order packet buffer full (tcp-buffer-full)                        3
  TCP Out-of-Order packet buffer timeout (tcp-buffer-timeout)                700
  TCP RST/SYN in window (tcp-rst-syn-in-win)                                   7
  TCP dup of packet in Out-of-Order queue (tcp-dup-in-queue)                   9
  TCP packet failed PAWS test (tcp-paws-fail)                                 37
  Slowpath security checks failed (sp-security-failed)                     86550
  ICMP Inspect bad icmp code (inspect-icmp-bad-code)                          72
  ICMP Inspect seq num not matched (inspect-icmp-seq-num-not-matched)          2
  FP L2 rule drop (l2_acl)                                                 38192
  Interface is down (interface-down)                                           5
  Dropped pending packets in a closed socket (np-socket-closed)              575
  Connection to PAT address without pre-existing xlate (nat-no-xlate-to-pat-pool)                           29377

Last clearing: Never

Flow drop:
  Inspection failure (inspect-fail)                                          896

Last clearing: Never

Повторяем эту команду несколько раз и получим, что увеличивается счетчик
Flow is denied by configured rule (acl-drop)

Ну и наконец вычисляем кто именно нас атакует:
capture drop type asp-drop real-time

msk-asa-01# capture drop type asp-drop real-time

Warning: using this option with a slow console connection may
         result in an excessive amount of non-displayed packets
         due to performance limitations.

Use ctrl-c to terminate real-time capture


   1: 10:54:16.344876       192.168.2.49.137 > 192.168.2.255.137:  udp 50
   2: 10:54:16.369655       195.112.100.134.40584 > 46.28.95.136.10778: S 2228624278:2228624278(0) win 1024
   3: 10:54:16.370220       195.112.100.134.40584 > 46.28.95.136.16113: S 2228624278:2228624278(0) win 1024  Drop-reason: (acl-drop) Flow is denied by configured rule
   4: 10:54:16.371288       195.112.100.134.40584 > 46.28.95.136.7025: S 2228624278:2228624278(0) win 1024
   5: 10:54:16.371410       195.112.100.134.40584 > 46.28.95.136.6779: S 2228624278:2228624278(0) win 1024  Drop-reason: (acl-drop) Flow is denied by configured rule
   6: 10:54:16.372310       195.112.100.134.40584 > 46.28.95.136.1198: S 2228624278:2228624278(0) win 1024  Drop-reason: (acl-drop) Flow is denied by configured rule
   7: 10:54:16.373271       195.112.100.134.40584 > 46.28.95.136.31337: S 2228624278:2228624278(0) win 1024  Drop-reason: (acl-drop) Flow is denied by configured rule
   8: 10:54:16.373378       195.112.100.134.40584 > 46.28.95.136.2170: S 2228624278:2228624278(0) win 1024
   9: 10:54:16.374004       195.112.100.134.40584 > 46.28.95.136.9485: S 2228624278:2228624278(0) win 1024  Drop-reason: (acl-drop) Flow is denied by configured rule
  10: 10:54:16.375102       195.112.100.134.40584 > 46.28.95.136.45100: S 2228624278:2228624278(0) win 1024  Drop-reason: (acl-drop) Flow is denied by configured rule

Это будет сразу видно по большому количеству дропов трафика от одного источника, т.е. от 195.112.100.134.

Подробнее см.
ASA Threat Detection Functionality and Сonfiguration
http://www.cisco.com/c/en/us/support/docs/security/asa-5500-x-series-nex...
