Настройка логирования

Для того, чтобы логи ZBF валились в буфер, настроим logging:

! Настройка отображения текущего времени
service timestamps log datetime localtime
!
! Включение логирования
logging on
!
!
! Логи на консоль
logging console critical
logging monitor debugging
!
! Настройка логирования в буфер
logging buffered informational
logging buffered 16386
logging rate-limit 100 except 4
!

Определяем какие зоны существуют

#show zone security
zone self
Description: System Defined Zone

zone OUTSIDE
 Member Interfaces:
 FastEthernet0/0/0

zone INSIDE
 Member Interfaces:
 Loopback0
 Loopback1
 GigabitEthernet0/0

zone TUNNEL
 Member Interfaces:
 Tunnel350
 Tunnel200

Определение пары зон

Определяем пару зон по направлению
Если нас интересует конкретное направление, например из интерфейса в зоне INSIDE в интерфейс в зоне TUNNEL:

ige01gtw01#show zone-pair security source INSIDE destination TUNNEL
Zone-pair name INSIDE-TUNNEL
    Source-Zone INSIDE  Destination-Zone TUNNEL
    service-policy pm_inside_tunnel

Общий список пар зон

#show zone-pair security
Zone-pair name INSIDE-OUTSIDE
    Source-Zone INSIDE  Destination-Zone OUTSIDE
    service-policy pm_inside-outside
Zone-pair name OUTSIDE-INSIDE
    Source-Zone OUTSIDE  Destination-Zone INSIDE
    service-policy pm_outside-inside
Zone-pair name OUTSIDE-SELF
    Source-Zone OUTSIDE  Destination-Zone self
    service-policy pm_outside-self
Zone-pair name SELF-OUTSIDE
    Source-Zone self  Destination-Zone OUTSIDE
    service-policy pm_self-outside
Zone-pair name INSIDE-TUNNEL
    Source-Zone INSIDE  Destination-Zone TUNNEL
    service-policy pm_inside_tunnel
Zone-pair name TUNNEL-INSIDE
    Source-Zone TUNNEL  Destination-Zone INSIDE
    service-policy pm_tunnel_inside

Отсюда можно отобразить нужные нам service-policy, например посмотрим service-policy pm_inside_tunnel:

ige01gtw01#show policy-map type inspect pm_inside_tunnel
  Policy Map type inspect pm_inside_tunnel
    Class cm_temp_drop
      Drop
    Class cm_temp_pass_all
      Pass
    Class cm_vpn_protocols
      Pass
    Class cm_service_protocols
      Inspect
    Class cm_sfb-traffic
      Inspect
    Class cm_voice_control_traffic
      Inspect
    Class cm_inside_tunnel_central_servers
      Inspect
    Class cm_inside_tunnel_voice_subnet
      Inspect
    Class cm_inside_tunnel_internal_servers
      Inspect
    Class cm_inside_tunnel_voice_servers
      Inspect
    Class class-default
      Drop log

или

ige01gtw01#show running-config | section pm_inside_tunnel

policy-map type inspect pm_inside_tunnel
 class type inspect cm_temp_drop
  drop
 class type inspect cm_temp_pass_all
  pass
 class type inspect cm_vpn_protocols
  pass
 class type inspect cm_service_protocols
  inspect
 class type inspect cm_sfb-traffic
  inspect
 class type inspect cm_voice_control_traffic
  inspect
 class type inspect cm_inside_tunnel_central_servers
  inspect
 class type inspect cm_inside_tunnel_voice_subnet
  inspect
 class type inspect cm_inside_tunnel_internal_servers
  inspect
 class type inspect cm_inside_tunnel_voice_servers
  inspect
 class class-default
  drop

Отдельные Class map можно просмотреть командой:

ige01gtw01#show class-map type inspect cm_voice_control_traffic
 Class Map type inspect match-any cm_voice_control_traffic (id 8)
   Match protocol sip
   Match protocol skinny
   Match protocol h323

Общая проверка статистики сессий

Данная проверка позволит понять статистику по каждому Class-map. Были ли вообще матчи и сколько прошло пакетов.
Вываливаем всё:

show policy-map type inspect zone-pair

Либо отображаем на уровне пар зон:

show policy-map type inspect zone-pair INSIDE-TUNNEL

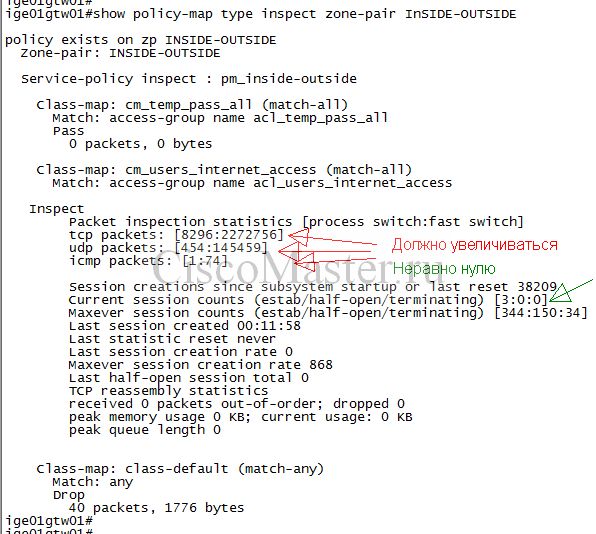

Если все нормально, общая статистика должна отображать следующие параметры:

Общая проверка наличия сессий

Здесь можно понять общее количество сессий в данный момент.

show policy-firewall session

Сессии на пару зон:

show policy-firewall session zone-pair INSIDE-OUTSIDE

или более подробная инфа:

show policy-map type inspect zone-pair sessions

Проверка наличия сессий на паре зон

Давайте посмотрим на примере выхода в интернет. Для того чтобы выйти в интернет, должны быть созданы две вещи:
- ip nat translation
- ZBF session

10_5_55_1#show policy-firewall session zone-pair OUTSIDE-SELF | section 37.193.64.214
        Session 21B1080 (195.20.104.27:23936)=>(37.193.64.214:22) tcp SIS_OPEN/TCP_ESTAB
          Created 00:25:37, Last heard 00:00:00
          Bytes sent (initiator:responder) [22646:84087]
10_5_55_1#

Поэтому если пинг удачен, мы увидим следующее:

#show policy-map type inspect zone-pair INSIDE-OUTSIDE sessions | section 192.168.48.13
        Session 155390E0 (192.168.48.13:8)=>(8.8.8.8:0) icmp SIS_OPEN
          Created 00:00:09, Last heard 00:00:05
          ECHO request
          Bytes sent (initiator:responder) [128:128]

#show ip nat translations | include 192.168.48.13
icmp 193.105.126.147:1    192.168.48.13:1       8.8.8.8:1             8.8.8.8:1

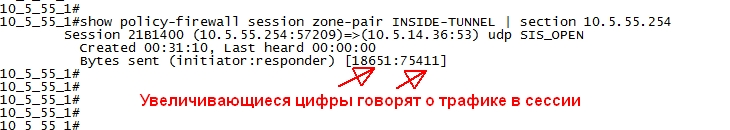

Исследуем конкретную сессию по IP:

show policy-firewall session zone-pair INSIDE-TUNNEL | section 10.5.55.254

Проверка сессий в каждой policy-map

Предположим, что у нас следующая service-policy:

policy-map type inspect pm_inside_tunnel
 class type inspect cm_temp_drop
  drop
 class type inspect cm_temp_pass_all
  pass
 class type inspect cm_vpn_protocols
  pass
 class type inspect cm_service_protocols
  inspect
 class type inspect cm_sfb-traffic
  inspect
 class type inspect cm_voice_control_traffic
  inspect
 class type inspect cm_inside_tunnel_central_servers
  inspect
 class type inspect cm_inside_tunnel_voice_subnet
  inspect
 class type inspect cm_inside_tunnel_internal_servers
  inspect
 class type inspect cm_inside_tunnel_voice_servers
  inspect
 class class-default
  drop log

Мы можем посмотреть сессии, а также принадлежность созданных сессий к Policy-map:

ige01gtw01#show policy-map type inspect zone-pair

policy exists on zp INSIDE-OUTSIDE
  Zone-pair: INSIDE-OUTSIDE

  Service-policy inspect : pm_inside-outside

    Class-map: cm_temp_pass_all (match-all)
      Match: access-group name acl_temp_pass_all
      Pass
        0 packets, 0 bytes

    Class-map: cm_users_internet_access (match-all)
      Match: access-group name acl_users_internet_access

   Inspect
        Packet inspection statistics [process switch:fast switch]
        tcp packets: [8327:2280522]
        udp packets: [454:145475]
        icmp packets: [1:126]

        Session creations since subsystem startup or last reset 38294
        Current session counts (estab/half-open/terminating) [4:0:0]
        Maxever session counts (estab/half-open/terminating) [344:150:34]
        Last session created 00:08:53
        Last statistic reset never
        Last session creation rate 0
        Maxever session creation rate 868
        Last half-open session total 0
        TCP reassembly statistics
        received 0 packets out-of-order; dropped 0
        peak memory usage 0 KB; current usage: 0 KB
        peak queue length 0


    Class-map: class-default (match-any)
      Match: any
      Drop
        40 packets, 1776 bytes

policy exists on zp OUTSIDE-INSIDE
  Zone-pair: OUTSIDE-INSIDE

  Service-policy inspect : pm_outside-inside

    Class-map: cm_temp_pass_all (match-all)
      Match: access-group name acl_temp_pass_all
      Pass
        0 packets, 0 bytes

    Class-map: cm_server1_services (match-all)
      Match: access-group name acl_server1_ip
      Match: class-map match-any cm_server1_protocols
        Match: protocol smtp
          0 packets, 0 bytes
          30 second rate 0 bps

   Inspect
        Session creations since subsystem startup or last reset 0
        Current session counts (estab/half-open/terminating) [0:0:0]
        Maxever session counts (estab/half-open/terminating) [0:0:0]
        Last session created never
        Last statistic reset never
        Last session creation rate 0
        Maxever session creation rate 0
        Last half-open session total 0
        TCP reassembly statistics
        received 0 packets out-of-order; dropped 0
        peak memory usage 0 KB; current usage: 0 KB
        peak queue length 0

ige01gtw01#show policy-map type inspect zone-pair INSIDE-TUNNEL sessions

policy exists on zp INSIDE-TUNNEL
  Zone-pair: INSIDE-TUNNEL

  Service-policy inspect : pm_inside_tunnel

    Class-map: cm_temp_drop (match-all)
      Match: access-group name acl_temp_drop
      Drop
        0 packets, 0 bytes

    Class-map: cm_temp_pass_all (match-all)
      Match: access-group name acl_temp_pass_all
      Pass
        0 packets, 0 bytes

    Class-map: cm_vpn_protocols (match-all)
      Match: access-group name acl_vpn_protocols
      Pass
        0 packets, 0 bytes

    Class-map: cm_service_protocols (match-any)
      Match: protocol tacacs
        0 packets, 0 bytes
        30 second rate 0 bps
      Match: protocol radius
        0 packets, 0 bytes
        30 second rate 0 bps
      Match: protocol icmp
        956 packets, 18897 bytes
        30 second rate 0 bps
      Match: protocol ntp
        4706 packets, 269576 bytes
        30 second rate 0 bps

   Inspect

    Class-map: cm_sfb-traffic (match-all)
      Match: access-group name acl_user-sfb-traffic

   Inspect

    Class-map: cm_voice_control_traffic (match-any)
      Match: protocol sip
        0 packets, 0 bytes
        30 second rate 0 bps
      Match: protocol skinny
        164 packets, 6336 bytes
        30 second rate 0 bps
      Match: protocol h323
        0 packets, 0 bytes
        30 second rate 0 bps

   Inspect

      Number of Established Sessions = 10
      Established Sessions
        Session 155439E0 (192.168.49.11:35078)=>(10.19.65.11:2000) skinny:tcp SIS_OPEN/TCP_ESTAB
          Created 04:10:51, Last heard 00:00:06
          Bytes sent (initiator:responder) [8345:10236]
        Session 1554A660 (192.168.49.13:35689)=>(10.19.65.11:2000) skinny:tcp SIS_OPEN/TCP_ESTAB
          Created 04:10:49, Last heard 00:00:15
          Bytes sent (initiator:responder) [8073:9164]
        Session 1554C5E0 (192.168.49.4:35213)=>(10.19.65.11:2000) skinny:tcp SIS_OPEN/TCP_ESTAB
          Created 04:10:48, Last heard 00:00:14
          Bytes sent (initiator:responder) [8072:9168]
        Session 15540FE0 (192.168.49.5:35273)=>(10.19.65.11:2000) skinny:tcp SIS_OPEN/TCP_ESTAB
          Created 04:08:52, Last heard 00:00:12
          Bytes sent (initiator:responder) [8024:9116]
        Session 15543D60 (192.168.49.13:35696)=>(10.19.65.12:2000) skinny:tcp SIS_OPEN/TCP_ESTAB
          Created 04:08:48, Last heard 00:00:45
          Bytes sent (initiator:responder) [2976:0]
        Session 155408E0 (192.168.49.4:35220)=>(10.19.65.12:2000) skinny:tcp SIS_OPEN/TCP_ESTAB
          Created 04:08:48, Last heard 00:00:44
          Bytes sent (initiator:responder) [2976:0]
        Session 1554C260 (192.168.49.5:35274)=>(10.19.65.12:2000) skinny:tcp SIS_OPEN/TCP_ESTAB
          Created 04:08:44, Last heard 00:00:44
          Bytes sent (initiator:responder) [2976:0]
        Session 15545960 (192.168.49.11:35085)=>(10.19.65.12:2000) skinny:tcp SIS_OPEN/TCP_ESTAB
          Created 04:08:50, Last heard 00:00:44
          Bytes sent (initiator:responder) [2976:0]
        Session 2EB2700 (192.168.49.10:35153)=>(10.19.65.11:2000) skinny:tcp SIS_OPEN/TCP_ESTAB
          Created 04:06:18, Last heard 00:00:03
          Bytes sent (initiator:responder) [8222:10112]
        Session 1552EC60 (192.168.49.10:35154)=>(10.19.65.12:2000) skinny:tcp SIS_OPEN/TCP_ESTAB
          Created 04:06:17, Last heard 00:00:17
          Bytes sent (initiator:responder) [2952:0]


Например посмотрим все подключения снаружи:

10_5_26_1#show policy-map type inspect zone-pair OUTSIDE-SELF sessions

policy exists on zp OUTSIDE-SELF
  Zone-pair: OUTSIDE-SELF

  Service-policy inspect : pm_outside-self

    Class-map: cm_temp_pass_all (match-all)
      Match: access-group name acl_temp_pass_all
      Pass
        0 packets, 0 bytes

    Class-map: cm_vpn_protocols (match-all)
      Match: access-group name acl_vpn_protocols
      Pass
        554379 packets, 299230930 bytes

    Class-map: cm_outside_self_ssh (match-all)
      Match: access-group 23
      Match: access-group name acl_ssh

   Inspect

      Number of Established Sessions = 1
      Established Sessions
        Session 11F63B00 (46.28.95.136:54887)=>(217.13.221.187:22) tcp SIS_OPEN/TCP_ESTAB
          Created 03:34:11, Last heard 00:00:00
          Bytes sent (initiator:responder) [142359:605659]


    Class-map: cm_outside_self_icmp (match-all)
      Match: protocol icmp

   Inspect

      Number of Established Sessions = 1
      Established Sessions
        Session 2722160 (46.28.95.136:8)=>(217.13.221.187:0) icmp SIS_OPEN
          Created 00:00:10, Last heard 00:00:00
          ECHO request
          Bytes sent (initiator:responder) [352:352]


    Class-map: class-default (match-any)
      Match: any
      Drop
        848 packets, 30030 bytes

Мы видим подключение по SSH и наличие пингов.
Здесь можно вытащить информацию кто пингует, когда был последний пинг, и насколько давно уже пингуют.

Предположим у нас не открываются папки от 192.168.48.13 на хост 192.168.2.12 - выясним причину

Для выяснения причины сначала включим лог на нужной нам service-policy:

(config)#policy-map type inspect pm_inside_tunnel
(config-pmap)#class class-default
(config-pmap-c)#drop log

При повторении попытки мы увидим сообщение в логе:

Dec 14 13:29:17.579: %FW-6-DROP_PKT: Dropping tcp session 192.168.48.13:49286 192.168.2.12:445 on zone-pair INSIDE-TUNNEL class class-default due to  DROP action found in policy-map with ip ident 22893

Удаление всех сессий

ZBF:

clear zone-pair TUNNEL-INSIDE inspect session

NAT:

clear ip nat translation *
